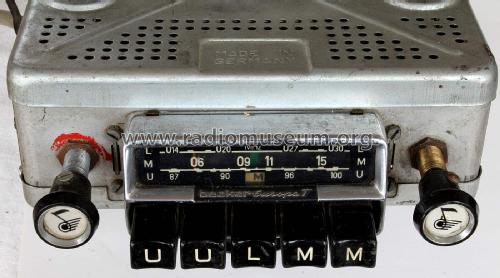

Europa TG; Becker, Max Egon, (ID = 2401575) Car Radio
Becker, Max Egon,: Europa TG [Car Radio] ID = 2401575 1400x780

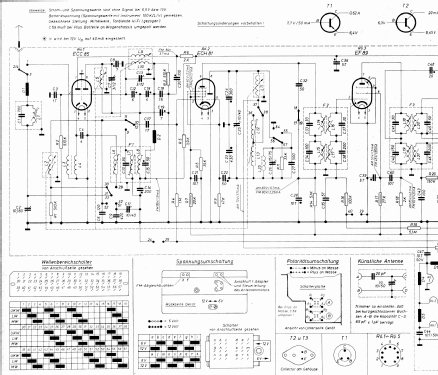

Select picture or schematic to display from thumbnails on the right and click for download.
For model Europa TG, Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim:
Auf der Frontblende: Europa T, aber auf dem Typenschild: Europa TG.

Country:  Germany
Manufacturer / Brand:  Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim
Year: 1962/1963 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 5: ECC85 ECH81 EF89 EBF89 ECF83
Semiconductors (the count is only for transistors) 3: GFT1008/40 GFT1008/40 TF80/30 OA79 OA79
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 3.8 W (unknown quality)
from Radiomuseum.org Model: Europa TG - Becker, Max Egon,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 180 x 93 x 188 mm / 7.1 x 3.7 x 7.4 inch
Notes

Halbautomatische Senderwahl; Anschlüsse für automatische Antenne und KW-Adapter.

Einige Geräte, abweichend vom Schaltplan, mit GFT3008/40 bestückt.

Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)
Price in first year of sale 375.00 DM
Collectors' prices
External source of data Erb
Source of data Handbuch VDRG 1962/1963 / Radiokatalog Band 2, Ernst Erb


All listed radios etc. from Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim
Here you find 295 models, 201 with images and 155 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
