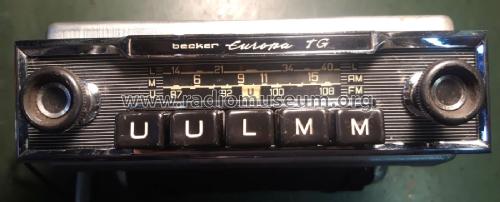

Europa TG/LMU

• Country
• Germany

• Manufacturer / Brand
• Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim

• Year
• 1963–1965

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 25917

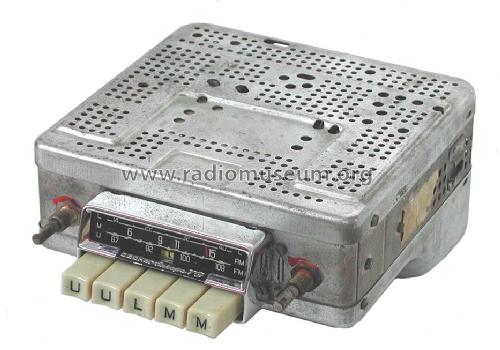

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECC85 ECH81 EF89 EBF89 ECF83

• Number of Transistors
• 3

• Semiconductors
• OA79 OA79 E125C100 E15C100 TF80/30 GFT1008/40 GFT1008/40

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 4 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Europa TG/LMU - Becker, Max Egon,

• Shape

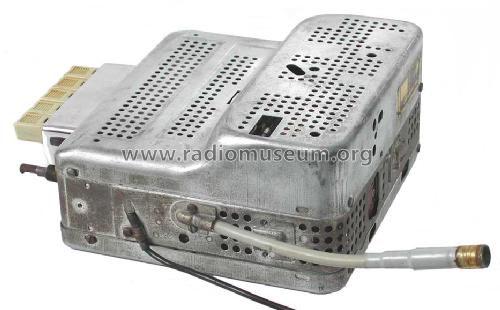

• Chassis only or for «building in»

• Dimensions (WHD)
• 181 x 90 x 174 mm / 7.1 x 3.5 x 6.9 inch

• Notes

• Polarität umschaltbar; Anschluss für automatische Antenne und KW-Adapter.

• Net weight (2.2 lb = 1 kg)
• 2.8 kg / 6 lb 2.7 oz (6.167 lb)

• Price in first year of sale
• 375.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1963/1964 / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers. (Service-Handbuch, Gerätetechnik C/06. B-2)
