• Country
• Germany

• Manufacturer / Brand
• Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim

• Year
• 1989 ?

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 219392

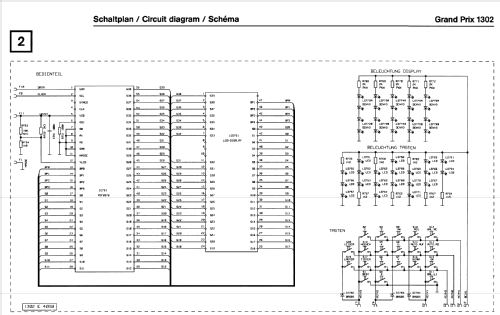

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 1

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Grand Prix 2000 1302 - Becker, Max Egon,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 182 x 52 x 162 mm / 7.2 x 2 x 6.4 inch

• Notes

• Stereo 2 x 20 Watt, mit Code gesichert.

  Prozessor / Microcontroller SAB80C515
  RAM FCF61C65LL-85T
  Eprom für Betriebssystem NMC27C256QE
  Eprom für Code 85C82
  FM Tuner TUA1574M
  FM search tuning IC TDA4210-3
  Stereo Demodulator TCA 4511-2
  AM Receiver TDA 4010
  Frequenz Synthesizer AM & FM PLL TSA6057
  Traffic Decoder TDA1579
  RDS Demodulator Philips SAF7579T oder Siemens SDA1000
  Audio Prozessor TDA7300

  Siehe auch Becker Grand Prix 2000 BE 1319.

• Net weight (2.2 lb = 1 kg)
• 2.2 kg / 4 lb 13.5 oz (4.846 lb)

• Author
• Model page created by Werner Hauf. See "Data change" for further contributors.
