Grand Prix LMKU; Becker, Max Egon, (ID = 691774) Car Radio

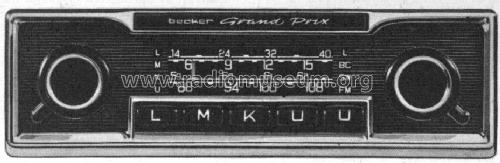

Becker, Max Egon,: Grand Prix LMKU [Car Radio] ID = 691774 928x303
Select picture or schematic to display from thumbnails on the right and click for download.
For model Grand Prix LMKU ab C001968, Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim:

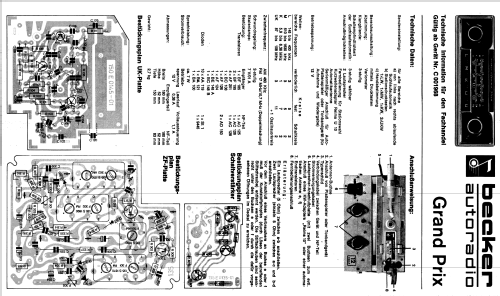

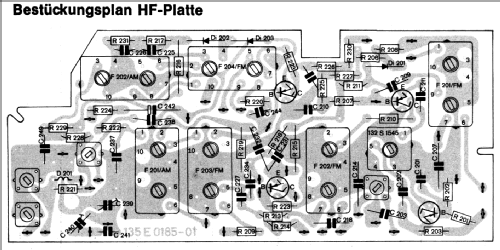

Service Manual

Country:  Germany
Manufacturer / Brand:  Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim
Year: 1967/1968 ? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 17: BF185 BF185 BF195 AF201 BC108 BC108 BC108 AF126 AF126 AF201 AF201 AF201 AC126 AC125 AC128 AD150 AD150 BA100 BA121 AA119 ST1
Main principle Superhet, double/triple conversion; ZF/IF 460/17000/10700 kHz
Tuned circuits 8 AM circuit(s)     14 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 7 W (unknown quality)
from Radiomuseum.org Model: Grand Prix LMKU [ab C001968] - Becker, Max Egon,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 180 x 52 x 150 mm / 7.1 x 2 x 5.9 inch
Notes

NF-Teil BHT: 180mm 52mm 83mm.
Dioden teilweise mehrfach vorhanden

Net weight (2.2 lb = 1 kg) 2.7 kg / 5 lb 15.2 oz (5.947 lb)
Source of data -- Original-techn. papers.

Model page created by Heribert Jung. See "Data change" for further contributors.
