Mexico TR ab 300001

Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim

Data
Forum
Pictures
Collections

  • Year
  • 1964/1965
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 26024

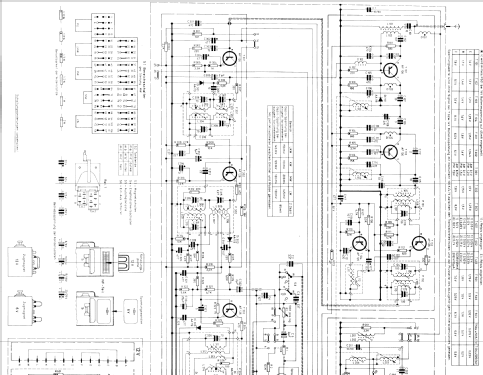

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 17
  • Main principle

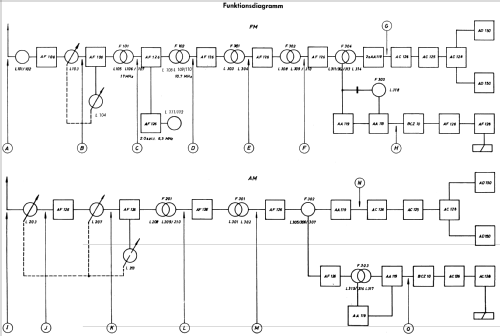

  • Superhet with RF-stage; ZF/IF 460/10700 kHz
  • Tuned circuits
  • 8 AM circuit(s)     13 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 7 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Mexico TR [ab 300001] - Becker, Max Egon,
  • Shape
  • Chassis only or for «building in»
  • Notes

  • Halbleiter teilweise mehrfach vorhanden.

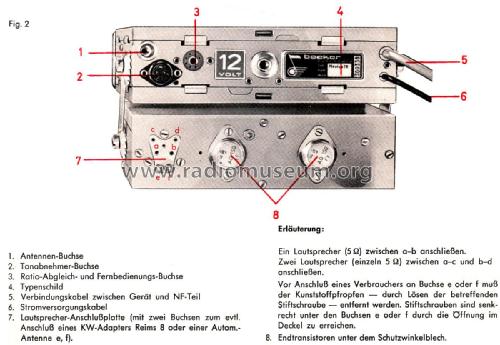

    Anschlüsse für automatische Antenne, KW-Adapter, TA/TB;
    Spannungswandler (DC-Converter bei 6-Volt-Betrieb).

    Abmessungen und Gewicht:
    Empfängerteil: 180 x 52 x 150 mm;

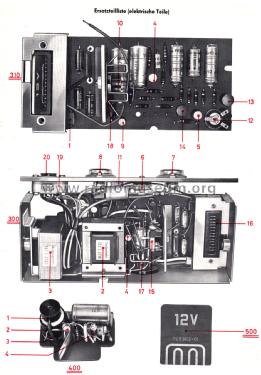

    Stromversorgungsteil (NF-Teil): 180 x 52 x 83 mm;
    Gewicht: 2,7 kg.

  • Price in first year of sale
  • 545.00 DM
  • External source of data
  • Erb
  • Mentioned in
  • -- Schematic
  • Literature/Schematics (1)
  • -- Original-techn. papers.
