Mexico TR ab Nr.305282
Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim
- Country
- Germany
- Manufacturer / Brand
- Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim
- Year
- 1965–1968
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 14026

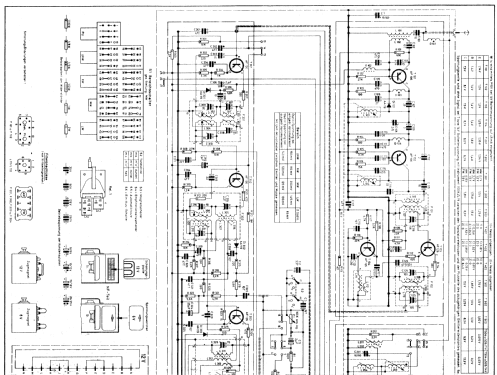

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 17
- Main principle
- Superhet with RF-stage; ZF/IF 460/10700 kHz
- Tuned circuits
- 8 AM circuit(s) 13 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 7 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Mexico TR [ab Nr.305282] - Becker, Max Egon,
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 180 x 52 x 150 mm / 7.1 x 2 x 5.9 inch
- Notes
- Halbleiter teilweise mehrfach vorhanden.
Automatischer Sendersuchlauf mit Fernbedienungsmöglichkeit; Anschlüsse für Automatik-Antenne, TA und TB. 6-V-Anschluss über DC-Converter (mit AC128).
2 Gehäuse: Empfängerteil und Verstärkerteil (180×52×83 mm).
Im VDRG-Handbuch 1967/68 ohne den Zusatz "TR" geführt.
- Net weight (2.2 lb = 1 kg)
- 2.7 kg / 5 lb 15.2 oz (5.947 lb)
- Price in first year of sale
- 555.00 DM
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Mentioned in
- Radiokatalog Band 2, Ernst Erb
- Literature/Schematics (1)
- Handbuch VDRG 1965/1966 (bis 1967/68)
- Picture reference
- Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.
