Monte Carlo LMK ab Nr. D800001

Monte Carlo LMK; Becker, Max Egon, (ID = 2277674) Car Radio

Monte Carlo LMK; Becker, Max Egon, (ID = 2277676) Car Radio

Monte Carlo LMK; Becker, Max Egon, (ID = 2277677) Car Radio

Monte Carlo LMK; Becker, Max Egon, (ID = 2277678) Car Radio
Monte Carlo LMK; Becker, Max Egon, (ID = 2382414) Car Radio Monte Carlo LMK; Becker, Max Egon, (ID = 736654) Car Radio
Monte Carlo LMK; Becker, Max Egon, (ID = 736655) Car Radio Monte Carlo LMK; Becker, Max Egon, (ID = 736656) Car Radio
Monte Carlo LMK; Becker, Max Egon, (ID = 1957132) Car Radio Monte Carlo LMK; Becker, Max Egon, (ID = 2277665) Car Radio
Monte Carlo LMK; Becker, Max Egon, (ID = 2277679) Car Radio Monte Carlo LMK; Becker, Max Egon, (ID = 2551546) Car Radio
Monte Carlo LMK; Becker, Max Egon, (ID = 2551547) Car Radio
Use red slider bar for more.
Monte Carlo LMK; Becker, Max Egon, (ID = 2382414) Car Radio
Becker, Max Egon,: Monte Carlo LMK [Car Radio] ID = 2382414 1400x1050

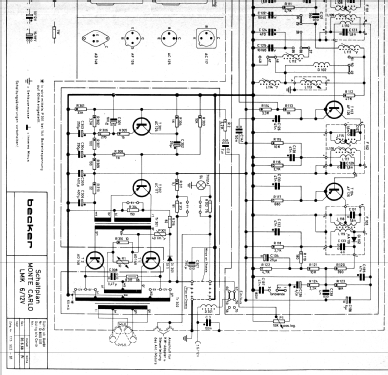

Select picture or schematic to display from thumbnails on the right and click for download.
For model Monte Carlo LMK ab Nr. D800001, Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim

Country:  Germany
Manufacturer / Brand:  Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim
Year: 1968/1969 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 8: AF126 AF126 AF126 AF126 AC125 AC117 AD148 AD148 AA119 AA119 ST1
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Monte Carlo LMK [ab Nr. D800001] - Becker, Max Egon,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 180 x 52 x 150 mm / 7.1 x 2 x 5.9 inch

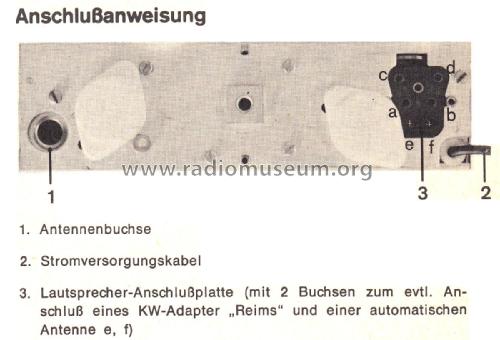

Notes Anschlüsse für Automatikantenne und KW-Adapter. Standardzubehör DM 37.-
Net weight (2.2 lb = 1 kg) 1.7 kg / 3 lb 11.9 oz (3.744 lb)
Price in first year of sale 140.00 DM
External source of data erb
Source of data Handbuch VDRG 1968/1969 / Radiokatalog Band 2, Ernst Erb


All listed radios etc. from Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim
Here you find 299 models, 210 with images and 156 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
