Monza MU ; Becker, Max Egon, (ID = 142596) Car Radio

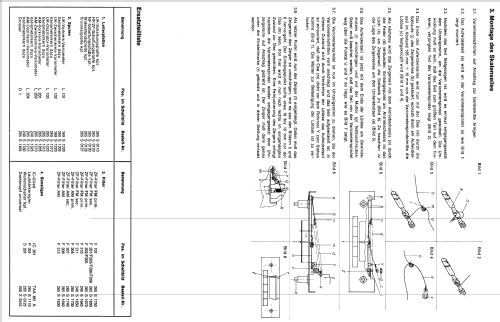

Becker, Max Egon,: Monza MU [Car Radio] ID = 142596 933x303
Select picture or schematic to display from thumbnails on the right and click for download.
For model Monza MU mit UKW, Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim

Country:  Germany
Manufacturer / Brand:  Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim
Year: 1971/1972 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 8: BF200 or. BF222 BF195 BF334 or. BF240 BF196 BF196 BF196 AD161 AD162 TAA861
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Monza MU [mit UKW] - Becker, Max Egon,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 180 x 43 x 117 mm / 7.1 x 1.7 x 4.6 inch
Notes

ICs: 1 TAA861A
Dioden: 8 x AA143; 1 x BA112; Sis03; 1 xZW8,2
Anschlüsse für PLattenspieler und Tonbandgerät (Aufnahme und Wiedergabe).

Empfangsbereich:
MW: 510 - 1630 kHz
UKW: 87 - 104 MHz

Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
External source of data Erb
Source of data Handbuch VDRG 1971/1972 / Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Schematic
Literature/Schematics (4) -- Original-techn. papers.
