- Country
- Great Britain (UK)
- Manufacturer / Brand
- Beethoven (Electric Equipment), Montague Radio Inventions; London, Manchester
- Year
- 1932 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 330306
- Number of Tubes
- 0
- Main principle
- TRF with regeneration; 2 AF stage(s)
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 200; 230; 250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- Power out
- 3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 99 - Beethoven Electric Equipment,
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Notes
-

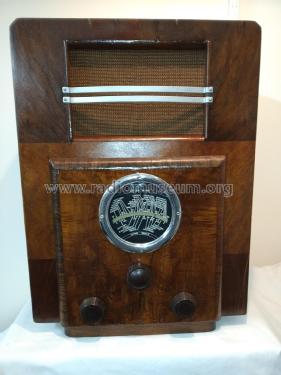

An AC mains MW/LW TRF table radio in a wooden case. Local/Distant switch, sockets for antenna, earth and gramophone.
- Net weight (2.2 lb = 1 kg)
- 14 kg / 30 lb 13.4 oz (30.837 lb)
- Author
- Model page created by Graham Moore. See "Data change" for further contributors.
- Other Models
-
Here you find 46 models, 22 with images and 26 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Beethoven (Electric Equipment), Montague Radio Inventions; London, Manchester
