• Year
  • 1934
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 78218

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • TRF with regeneration; Screengrid 1926-1935
  • Tuned circuits
  • 2 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Dry Batteries

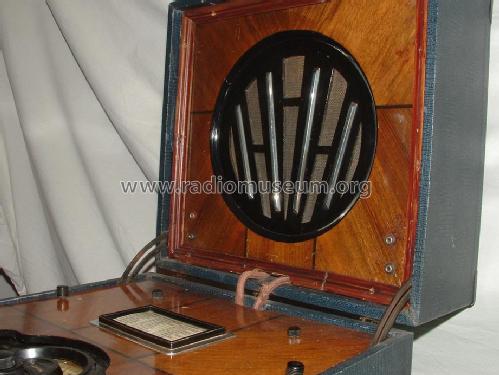

  • Loudspeaker
  • -Loudspeaker incorporated, but system not known.
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org

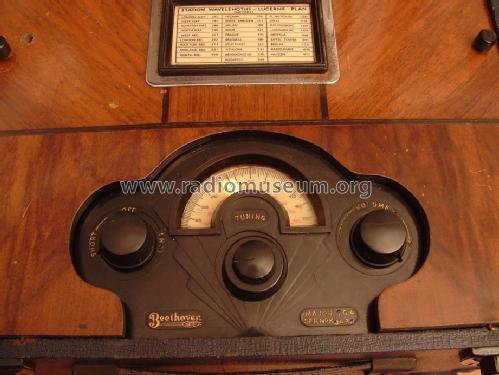

  • Model: Major S.G.4 early [rounded brown bakelite panel] - Beethoven Electric Equipment,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 13 x 10 x 14 inch / 330 x 254 x 356 mm
  • Notes

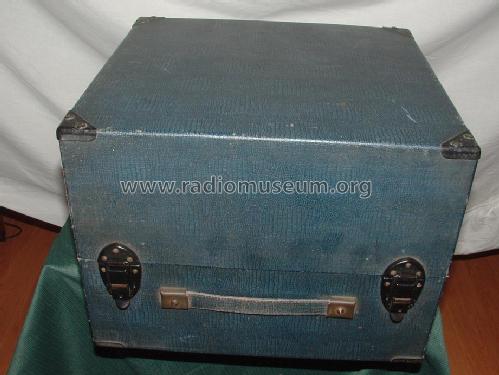

  • Blue "Lizard" cloth covered wooden case.
