Tiantan 天坛 TTB

Tiantan 天坛 TTB; Beijing 北京崇文广播器材厂 (ID = 817505) Radio

Tiantan 天坛 TTB; Beijing 北京崇文广播器材厂 (ID = 817506) Radio
Tiantan 天坛 TTB; Beijing 北京崇文广播器材厂 (ID = 814865) Radio
Use red slider bar for more.
Tiantan 天坛 TTB; Beijing 北京崇文广播器材厂 (ID = 814865) Radio

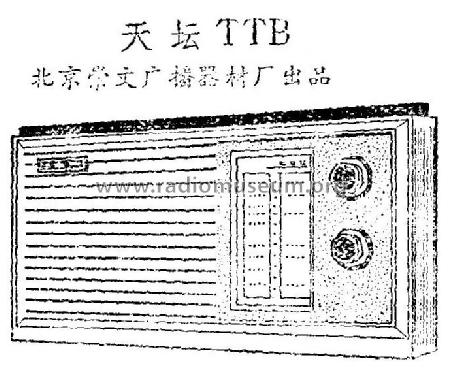

Beijing 北京崇文广播器材厂: Tiantan 天坛 TTB [Radio] ID = 814865 688x574
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tiantan 天坛 TTB, Beijing 北京崇文广播器材厂 Beijing Chong Wen Broadcast Equipment Factory; Beijing :

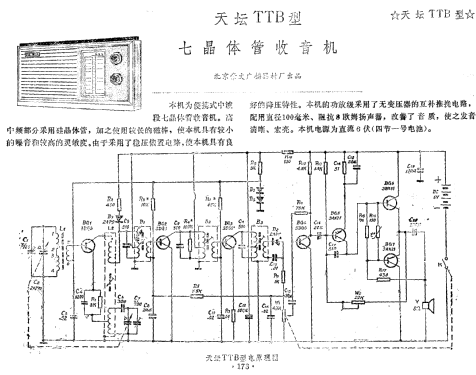

Picture from the Transistor Radio Circuit Manual August 1981 vol. 1 of 5 (internal 03), page 173 for reference when somebody is uploading real photos and as reference for collectors, comparing models.

Country:  People's Republic of China
Manufacturer / Brand:  Beijing 北京崇文广播器材厂 Beijing Chong Wen Broadcast Equipment Factory; Beijing
Year: 1972 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: 3DG6 3DG6 3DG6 3DG6 3AX21 3BX31 3AX21 2AP9 2AP9
Main principle Superheterodyne (common); ZF/IF 465 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Tiantan 天坛 TTB - Beijing 北京崇文广播器材厂 Beijing
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Notes The model Tiantan 天坛 TTB (Temple of heaven) has the following key features 主要性能: Frequency range 频率范围: broadcast band 525 - 1605 kc. Sensitivity 灵敏度: < 1 mV/m. Selectivity 选择性: 14 dB N/S. Set audio output 额定功率: 150 mW (250 mW). Electric power consumption 电源消耗 at zero signal 零信号: is20 mA, at max. output 80 mA. The IF 中频频率 is 465 kc. Loudspeaker impedance is 8 ohm. 4 diodes.
Literature/Schematics (1) 03-Transistor Radio Circuit Manual 1981 August (1 of 5) (page 173.)

Model page created by Ernst Erb. See "Data change" for further contributors.
