• Year
  • 1958
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 177600

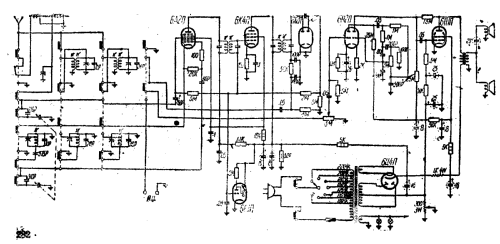

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 100; 110; 125; 150; 180; 200; 220 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Beijing 北京 711 - Beijing 北京无线电器材厂 Beijing Radio
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 600 x 370 x 240 mm / 23.6 x 14.6 x 9.4 inch
  • Notes
  • The model Peony 752-AGP is the export version of the model Beijing 711. These AC multivoltage models receive broadcast band 520 - 1600 kHz and two SW bands, 11.5 - 23 MHz and 5.7 - 11.7 MHz. This is 13 through 52 m.
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
