Test Oscillator TE-16A (Palace)

Test Oscillator TE-16A ; Belco, Tokyo (ID = 398428) Equipment

Test Oscillator TE-16A ; Belco, Tokyo (ID = 401266) Equipment

Test Oscillator TE-16A ; Belco, Tokyo (ID = 401267) Equipment

Test Oscillator TE-16A ; Belco, Tokyo (ID = 401269) Equipment

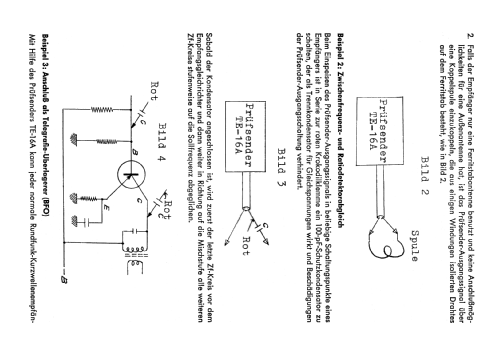

Test Oscillator TE-16A ; Belco, Tokyo (ID = 401270) Equipment

Test Oscillator TE-16A ; Belco, Tokyo (ID = 401272) Equipment

Test Oscillator TE-16A ; Belco, Tokyo (ID = 401273) Equipment
Test Oscillator TE-16A ; Belco, Tokyo (ID = 427743) Equipment Test Oscillator TE-16A ; Belco, Tokyo (ID = 427744) Equipment
Use red slider bar for more.
Test Oscillator TE-16A ; Belco, Tokyo (ID = 427743) Equipment

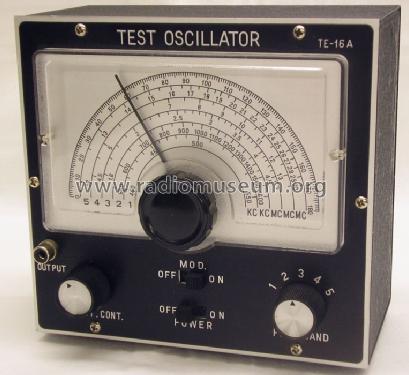

Belco, Tokyo: Test Oscillator TE-16A [Equipment] ID = 427743 765x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Test Oscillator TE-16A (Palace), Belco, Tokyo

Country:  Japan
Manufacturer / Brand:  Belco, Tokyo
Year: 1960–1972 ?? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) 2: 2SA342 2SB75 or. 2SB175
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Test Oscillator TE-16A - Belco, Tokyo
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 150 x 148 x 92 mm / 5.9 x 5.8 x 3.6 inch
Notes

Frequenzbereiche: 400...550 kHz; 550...1600 kHz; 1,6...4,5 MHz; 4,5...13 MHz; 12...30 MHz.

Interne Modulation mit 800Hz, HF-Ausgang regelbar von 0-2V, mit Meßkabel

Net weight (2.2 lb = 1 kg) 1.1 kg / 2 lb 6.8 oz (2.423 lb)
Price in first year of sale 78.00 DM
Source of data -- Original prospect or advert
Mentioned in Technik-Versand KG, Katalog Nr. 23, 1972

Model page created by Hubert Kölbl. See "Data change" for further contributors.
