RF Signal Generator TY-85

RF Signal Generator TY-85; Belco, Tokyo (ID = 1967736) Equipment

RF Signal Generator TY-85; Belco, Tokyo (ID = 1968064) Equipment

RF Signal Generator TY-85; Belco, Tokyo (ID = 1968065) Equipment

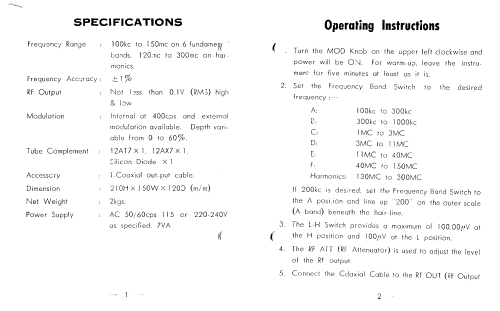

RF Signal Generator TY-85; Belco, Tokyo (ID = 1968066) Equipment

RF Signal Generator TY-85; Belco, Tokyo (ID = 1968067) Equipment
RF Signal Generator TY-85; Belco, Tokyo (ID = 1293988) Equipment RF Signal Generator TY-85; Belco, Tokyo (ID = 605405) Equipment
RF Signal Generator TY-85; Belco, Tokyo (ID = 746089) Equipment RF Signal Generator TY-85; Belco, Tokyo (ID = 746090) Equipment
RF Signal Generator TY-85; Belco, Tokyo (ID = 746091) Equipment RF Signal Generator TY-85; Belco, Tokyo (ID = 1021654) Equipment
RF Signal Generator TY-85; Belco, Tokyo (ID = 1021655) Equipment RF Signal Generator TY-85; Belco, Tokyo (ID = 1294008) Equipment
Use red slider bar for more.
RF Signal Generator TY-85; Belco, Tokyo (ID = 1293988) Equipment

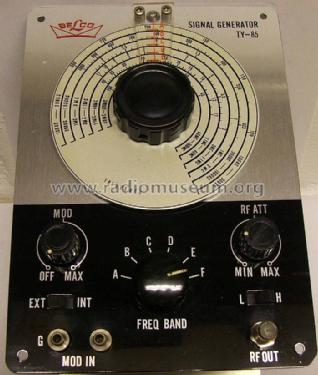

Belco, Tokyo: RF Signal Generator TY-85 [Equipment] ID = 1293988 933x1071
Select picture or schematic to display from thumbnails on the right and click for download.
For model RF Signal Generator TY-85, Belco, Tokyo

Country:  Japan
Manufacturer / Brand:  Belco, Tokyo
Year: 1968 ? Category: Service- or Lab Equipment
Valves / Tubes 2: 12AT7 12AX7
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: RF Signal Generator TY-85 - Belco, Tokyo
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 150 x 210 x 120 mm / 5.9 x 8.3 x 4.7 inch
Notes Frequency ranges:
A: 100-300 kHz
B: 300-1000 kHz
C: 1-3 MHz
D: 3-11 MHz
E: 11-40 MHz
F: 40-150 MHz
130-300 MHz (with 2nd harmonic)
Accuracy of frequency: ±1%
RF-level: 0...0,1V adjustable.
Modulation: 400Hz, max 60%.
Preis in D: 120,-- DM.
Collectors' prices
Literature/Schematics (1) Bauer-Katalog, Bamberg, 1968

Model page created by a member from D. See "Data change" for further contributors.
