Superlux AC838

Superlux AC838; Belgo Radio; (ID = 1910592) Radio Superlux AC838; Belgo Radio; (ID = 1910598) Radio

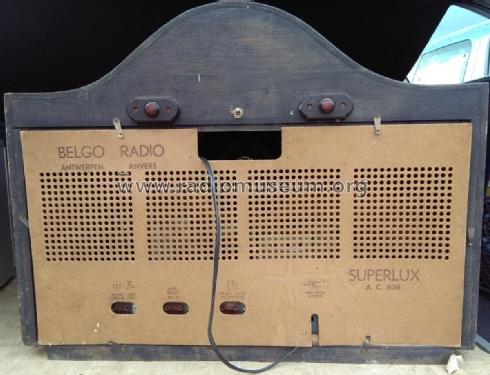

Superlux AC838; Belgo Radio; (ID = 2130597) Radio Superlux AC838; Belgo Radio; (ID = 2130596) Radio
Use red slider bar for more.

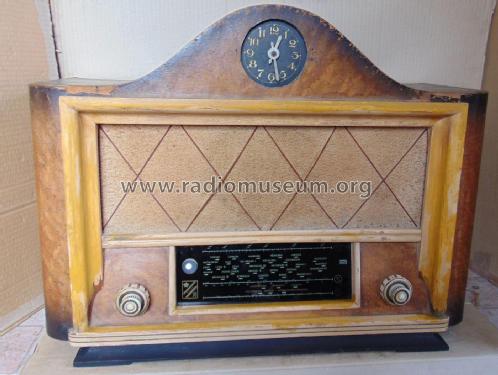

Superlux AC838; Belgo Radio; (ID = 1910592) Radio
Belgo Radio;: Superlux AC838 [Radio] ID = 1910592 1400x1054
Select picture or schematic to display from thumbnails on the right and click for download.
For model Superlux AC838, Belgo Radio; Antwerpen:
Glasabdeckung der Uhr fehlt

Country:  Belgium
Manufacturer / Brand:  Belgo Radio; Antwerpen
Year: 1940 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6SA7 6SK7 6SQ7 6V6 6E5 5Y3
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and Short Wave.
Details Radio with other functions
Power type and voltage Alternating Current supply (AC) / 110; 130; 145; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: Superlux AC838 - Belgo Radio; Antwerpen
Material Wooden case
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 690 x 515 x 295 mm / 27.2 x 20.3 x 11.6 inch
Notes

A battery of 4,5 Volt is needed for the clock.

Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)

Model page created by Manfred Rathgeb. See "Data change" for further contributors.
