• Country
• United States of America (USA)

• Manufacturer / Brand
• Bell & Howell, Wheeling (Illinois)

• Year
• 1995 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 233368

• • Brand: DeVry

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, more than 2 SW bands plus FM or UHF.

• Power type and voltage
• Dry Batteries / 2 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: FM/MW/SW 9 band world receiver - Bell & Howell, Wheeling

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 5 x 3 x 1.25 inch / 127 x 76 x 32 mm

• Notes

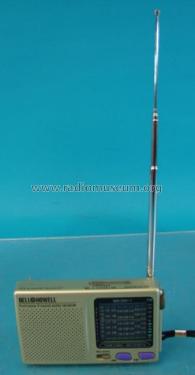

• Bell+Howell Pocket World Receiver Model FM/MW/SW 9band world receiver.
  Wrist Strap, Pull Up antenna.

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
