Futura 400

Bell Products Co.; St. Louis

Data
Forum
Pictures
Collections

  • Year
  • 1961–1963
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 224089

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 2
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Tape Recorder
  • Power type and voltage
  • Storage and/or dry batteries / 3 & 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2 inch = 5.1 cm
  • Power out
  • 0.1 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Futura 400 - Bell Products Co.; St. Louis
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 9.5 x 3 x 8 inch / 241 x 76 x 203 mm
  • Notes

  • Monophonic recorder and player. Standard 1/4 inch tape in 3 inch reels. Crystal microphone plugs into 1/8 inch jack. No bias oscillator. Permanent magnet erases during record. Single track records across entire width of tape. No gain adjust for record or playback. No capstan so nominal 3 3/4 inch-per-second tape speed varies during recording. Single motor drives play/record and rewind. No fast forward. Although the audio quality is primitive it was a great first tape recorder for the budding 11 year old audio enthusiast of 1961.



    Bell Products 4251 Foret Park Avenue, St. Louis, MO 63108

  • Net weight (2.2 lb = 1 kg)
  • 1.9 lb (1 lb 14.4 oz) / 0.863 kg
  • Price in first year of sale
  • 30.00 US

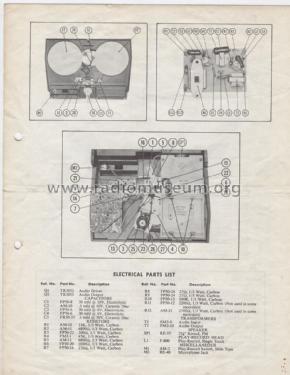

  • Circuit diagram reference
  • Photofact Folder, Howard W. SAMS
  • Mentioned in
  • Popular Electronics December 1961 Page 56
  • Author
  • Model page created by Gary Brandenburger. See "Data change" for further contributors.
