• Country
• Belgium

• Manufacturer / Brand
• Belson (brand), Beltrans Trading; Bruxelles

• Year
• 1965 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 359485

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / AA: 1 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.8 cm = 1.9 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

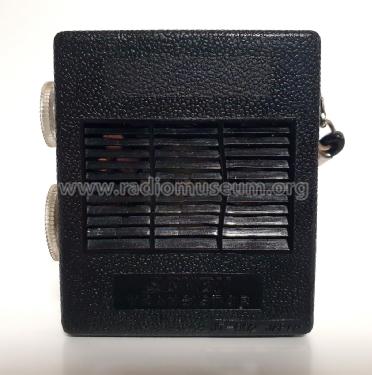

• Model: Micro 7 Transistor TR714 - Belson brand, Beltrans Trading

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 64 x 68 x 29 mm / 2.5 x 2.7 x 1.1 inch

• Notes

• Made in Japan JT-602

  See also Orion Micro TR714

• Net weight (2.2 lb = 1 kg)
• 0.120 kg / 0 lb 4.2 oz (0.264 lb)

• Author
• Model page created by Nikolai Galak. See "Data change" for further contributors.
