Belson Six

Belson Six; Belson brand, (ID = 1034151) Radio Belson Six; Belson brand, (ID = 1034152) Radio
Belson Six; Belson brand, (ID = 1034153) Radio Belson Six; Belson brand, (ID = 1034154) Radio
Belson Six; Belson brand, (ID = 1034155) Radio Belson Six; Belson brand, (ID = 1750968) Radio
Belson Six; Belson brand, (ID = 1750969) Radio Belson Six; Belson brand, (ID = 1750970) Radio
Belson Six; Belson brand, (ID = 1750971) Radio
Use red slider bar for more.

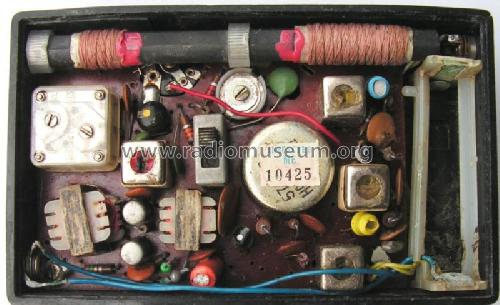

Belson Six; Belson brand, (ID = 1034151) Radio
Belson brand,: Belson Six [Radio] ID = 1034151 800x604
Select picture or schematic to display from thumbnails on the right and click for download.
For model Belson Six, Belson (brand), Beltrans Trading; Bruxelles:
Thanks for Mr.Sik Béla, Hungary, Budapest and Első Zalai Rádiómúzeum Alapítvány. First Zala County Radio Museum Foundation.

Country:  Belgium
Manufacturer / Brand:  Belson (brand), Beltrans Trading; Bruxelles
Year: 1968 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 2 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Belson Six - Belson brand, Beltrans Trading
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 115 x 70 x 38 mm / 4.5 x 2.8 x 1.5 inch
Notes Made in Singapore.
Net weight (2.2 lb = 1 kg) 0.2 kg / 0 lb 7 oz (0.441 lb)

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.



All listed radios etc. from Belson (brand), Beltrans Trading; Bruxelles
Here you find 36 models, 35 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
