Six Transistor (Japan JT-602)

Six Transistor ; Belson brand, (ID = 1464414) Radio Six Transistor ; Belson brand, (ID = 1464413) Radio
Six Transistor ; Belson brand, (ID = 1464422) Radio Six Transistor ; Belson brand, (ID = 1464427) Radio
Six Transistor ; Belson brand, (ID = 1464430) Radio Six Transistor ; Belson brand, (ID = 1464432) Radio
Six Transistor ; Belson brand, (ID = 1464435) Radio Six Transistor ; Belson brand, (ID = 1464436) Radio
Six Transistor ; Belson brand, (ID = 1464438) Radio Six Transistor ; Belson brand, (ID = 1464441) Radio
Use red slider bar for more.

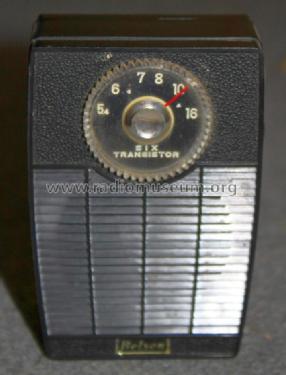

Six Transistor ; Belson brand, (ID = 1464414) Radio
Belson brand,: Six Transistor [Radio] ID = 1464414 933x1243
Select picture or schematic to display from thumbnails on the right and click for download.
For model Six Transistor (Japan JT-602), Belson (brand), Beltrans Trading; Bruxelles

Country:  Belgium
Manufacturer / Brand:  Belson (brand), Beltrans Trading; Bruxelles
Year: 1961 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2SA45 2SA366 2SA466 2SB422 2SB423 2SB423 1S426
Main principle Super-Heterodyne (Super in general)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 2 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Six Transistor - Belson brand, Beltrans Trading
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 67 x 100 x 36 mm / 2.6 x 3.9 x 1.4 inch
Notes

AM Pocket Radio

See also Orion Electric Colton Six Transistor

Made in Japan JT-602

Net weight (2.2 lb = 1 kg) 0.190 kg / 0 lb 6.7 oz (0.419 lb)
Collectors' prices

Model page created by Franz Scharner. See "Data change" for further contributors.



All listed radios etc. from Belson (brand), Beltrans Trading; Bruxelles
Here you find 36 models, 35 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
