AM/FM afc 10 Transistor

AM/FM afc 10 Transistor ; Belson brand, (ID = 2127088) Radio AM/FM afc 10 Transistor ; Belson brand, (ID = 2127089) Radio
AM/FM afc 10 Transistor ; Belson brand, (ID = 1774309) Radio AM/FM afc 10 Transistor ; Belson brand, (ID = 1774308) Radio
AM/FM afc 10 Transistor ; Belson brand, (ID = 1774310) Radio AM/FM afc 10 Transistor ; Belson brand, (ID = 1774311) Radio
AM/FM afc 10 Transistor ; Belson brand, (ID = 1774312) Radio AM/FM afc 10 Transistor ; Belson brand, (ID = 1774313) Radio
Use red slider bar for more.
AM/FM afc 10 Transistor ; Belson brand, (ID = 2127088) Radio
Belson brand,: AM/FM afc 10 Transistor [Radio] ID = 2127088 1170x740
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM/FM afc 10 Transistor, Belson (brand), Beltrans Trading; Bruxelles

Country:  Belgium
Manufacturer / Brand:  Belson (brand), Beltrans Trading; Bruxelles
Year: 1970 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 6LR61: 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.8 cm = 2.7 inch
Power out
from Radiomuseum.org Model: AM/FM afc 10 Transistor - Belson brand, Beltrans Trading
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 145 x 86 x 40 mm / 5.7 x 3.4 x 1.6 inch
Notes

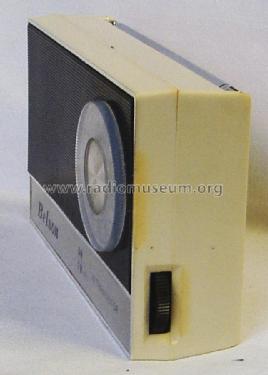

Mit klappbarer Teleskopantenne, Ohrhöreranschluss 3,5mm links, Lautstärkeregler rechts, Abstimmung auf Frontseite und Bereichschiebeschalter rückseitig.

Empfangsbereiche:
UKW: 87.5 - 108MHz
MW:  540 - 1620kHz.

Made in Hong Kong

Net weight (2.2 lb = 1 kg) 0.339 kg / 0 lb 11.9 oz (0.747 lb)

Model page created by Holger Struthoff. See "Data change" for further contributors.



All listed radios etc. from Belson (brand), Beltrans Trading; Bruxelles
Here you find 36 models, 35 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
