Solid State ac/dc

Solid State ac/dc ; Belson brand, (ID = 2293163) Radio Solid State ac/dc ; Belson brand, (ID = 2293164) Radio
Solid State ac/dc ; Belson brand, (ID = 2027383) Radio Solid State ac/dc ; Belson brand, (ID = 2027385) Radio
Solid State ac/dc ; Belson brand, (ID = 2027387) Radio
Use red slider bar for more.
Solid State ac/dc ; Belson brand, (ID = 2293163) Radio
Belson brand,: Solid State ac/dc [Radio] ID = 2293163 1400x1083
Select picture or schematic to display from thumbnails on the right and click for download.
For model Solid State ac/dc, Belson (brand), Beltrans Trading; Bruxelles

Country:  Belgium
Manufacturer / Brand:  Belson (brand), Beltrans Trading; Bruxelles
Year: 1970 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7:
Main principle Super-Heterodyne (Super in general)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Line / Batteries (any type) / 220 / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out
from Radiomuseum.org Model: Solid State ac/dc - Belson brand, Beltrans Trading
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 205 x 125 x 70 mm / 8.1 x 4.9 x 2.8 inch
Notes

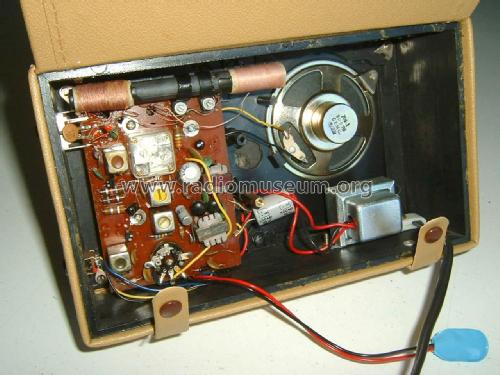

This model is very similar to Belson model Solid State 10 AC/DC, but has a totally different PCB (with 7 in stead of 10 transistors).

Assembled in Singapore.

Model page created by Georges Van Campenhout. See "Data change" for further contributors.
