• Country
• United States of America (USA)

• Manufacturer / Brand
• Bendix Radio Division; Baltimore, MD

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 34365

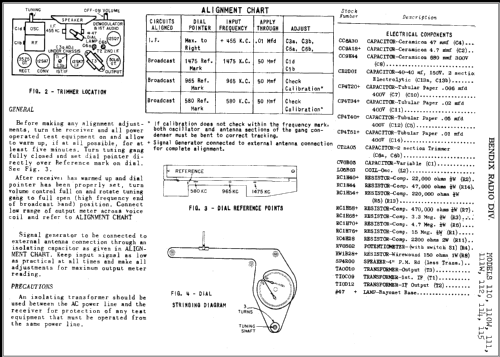

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 50L6GT 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 105 - 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 1.8 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 110W - Bendix Radio Division;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes
• Color=Ivory

• Price in first year of sale
• 25.00 $

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 18 = 1949 and before

• Literature/Schematics (4)
• Photofact Folder, Howard W. SAMS (Set 41, Date 5/48, Folder 4811-3)
