111 ; Bendix Radio (ID = 836404) Radio

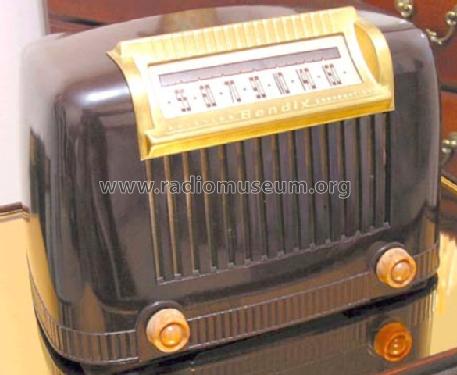

Bendix Radio: 111 [Radio] ID = 836404 585x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model 111, Bendix Radio Division; Baltimore, MD:
Mit freundlicher Genehmigung der Bendix Radio Foundation

Country:  United States of America (USA)
Manufacturer / Brand:  Bendix Radio Division; Baltimore, MD
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12SK7 12SQ7 50L6GT 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105 - 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 1.8 W (unknown quality)
from Radiomuseum.org Model: 111 - Bendix Radio Division;
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes Color=Walnut Finish.
Price in first year of sale 28.00 $
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition

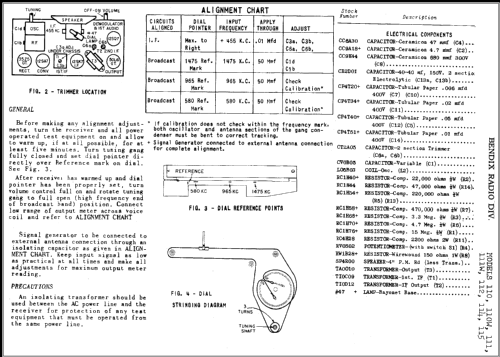

Circuit diagram reference Rider's Perpetual, Volume 18 = 1949 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Table Top Radios Vol. 1 Stein 98 (page 44.)

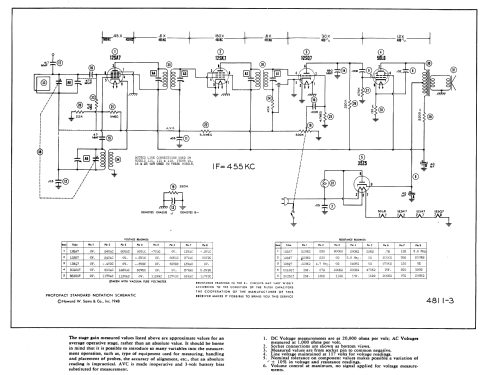

Literature/Schematics (4) Photofact Folder, Howard W. SAMS (Set 41, Date 5/48, Folder 4811-3)
