526-C Ch= R-1; Bendix Radio (ID = 2033583) Radio
Bendix Radio: 526-C Ch= R-1 [Radio] ID = 2033583 1400x1088
Select picture or schematic to display from thumbnails on the right and click for download.

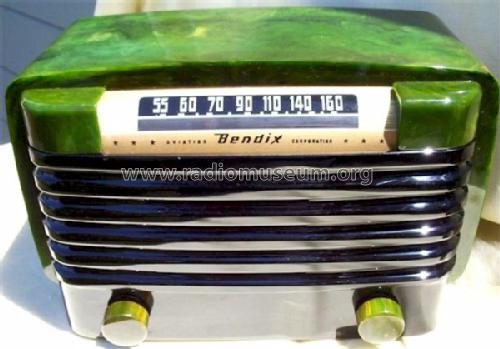

For model 526-C Ch= R-1, Bendix Radio Division; Baltimore, MD

Country:  United States of America (USA)
Manufacturer / Brand:  Bendix Radio Division; Baltimore, MD
Year: 1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12SK7 12SQ7 50L6 35Z5
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105, 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 1.88 W (unknown quality)
from Radiomuseum.org Model: 526-C Ch= R-1 - Bendix Radio Division;
Material Catalin (a brand name for a thermosetting polymer popular in the 1930s and 1940s - a phenol formaldehyde resin - like Bakelite, but a two-stage process with a lot of work afterwards).
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 11.25 x 7.25 x 6.3125 inch / 286 x 184 x 160 mm
Notes Choice of green and black, or twotoned brown. "Super Signal" built-in antenna.
Price in first year of sale 29.95 $
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 20 covering 1950
Mentioned in Table Top Radios Vol. 1 Stein 98 (Bendix Service Manual)
Literature/Schematics (1) Rider's Perpetual, Volume 15 = 1947 and before (The Radio CollectorGrinder, 1995)
Literature/Schematics (2) Radio Retailing (Radio & Television R.) (April 1946 page 90. September 1946 page 9.)


All listed radios etc. from Bendix Radio Division; Baltimore, MD
