Plymouth Transaudio 5BP-Mopar 224

Bendix Radio Division; Baltimore, MD

  • Year
  • 1965 ?
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 327203

 Technical Specifications

  • Number of Transistors
  • 6
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 262,5 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 2 W (max.)
  • Material
  • Metal case
  • from Radiomuseum.org

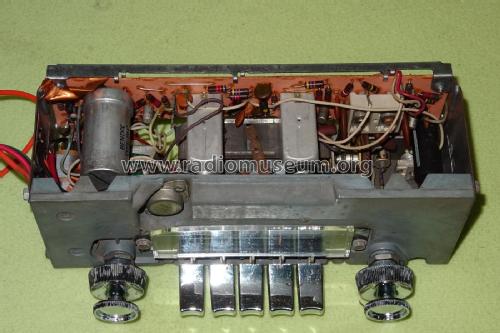

  • Model: Plymouth Transaudio 5BP-Mopar 224 - Bendix Radio Division;
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 230 x 90 x 100 mm / 9.1 x 3.5 x 3.9 inch
  • Notes
  • Plymouth Standard All Transistor AM-Radio Model Bendix 5BP - Mopar 224

    Tuning Range:
    AM 535 - 1605 kHz

    Speaker impedance 8 ohms

    5 Pushbuttons for automatic station selection

    4x PNP germanium transistors
    2x NPN silicon transistors

    2x germanium diodes

  • Net weight (2.2 lb = 1 kg)
  • 1.8 kg / 3 lb 15.4 oz (3.965 lb)
  • Mentioned in
  • - - Manufacturers Literature (Bendix Auto Radio Service Manual Part No. 2093399-3 7-64)
  • Author
  • Model page created by Norbert Deutsch. See "Data change" for further contributors.
