RA-1J ; Bendix Radio (ID = 770483) Commercial Re
Bendix Radio: RA-1J [Commercial Re] ID = 770483 900x675
Select picture or schematic to display from thumbnails on the right and click for download.
For model RA-1J, Bendix Radio Division; Baltimore, MD

Country:  United States of America (USA)
Manufacturer / Brand:  Bendix Radio Division; Baltimore, MD
Year: 1941–1946 Category: Commercial Receiver (may include amateur bands)
Valves / Tubes 8: 6K7G 6K7G 6L7G 6K7G 6K7G 6R7G 6K6G 6K7G
Main principle Superhet with RF-stage; ZF/IF 1630 kHz; 1 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12; 24 Volt
Loudspeaker - For headphones or amp.
Power out 1 W (unknown quality)
from Radiomuseum.org Model: RA-1J - Bendix Radio Division;
Material Metal case
Shape Rack
Dimensions (WHD) 249 x 225 x 410 mm / 9.8 x 8.9 x 16.1 inch

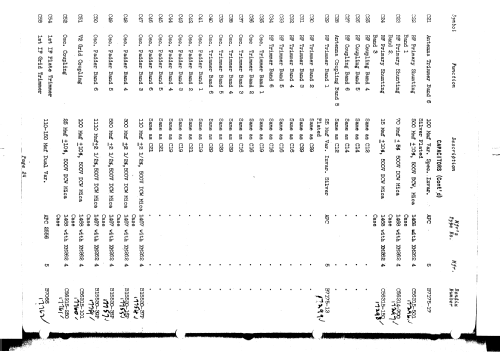

Notes This receiver is a variant of RA-1B with a different short wave frequency-range: band 1:150-315 kHz, band 2:315-680 kHz, band 3:680-1500 kHz, band 4:2,5-5,0 MHz, band 5:5,0-10,0 MHz, band 6:10,0-20,0 MHz. Reception of AM/CW signals. HT-supply by dynamotor 12 or 24 volts. Heater voltage connection in the set must be adjusted to 12 or 24 volts.
Net weight (2.2 lb = 1 kg) 11.4 kg / 25 lb 1.8 oz (25.11 lb)
Source of data -- Original-techn. papers.

Model page created by Jan Terranea. See "Data change" for further contributors.
