Transmitter, Radiosonde T-435A/AMT-4B

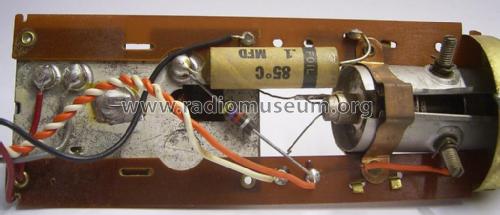

Transmitter, Radiosonde T-435A/AMT-4B; Bendix Radio (ID = 2406930) TX Transmitter, Radiosonde T-435A/AMT-4B; Bendix Radio (ID = 2406931) TX
Transmitter, Radiosonde T-435A/AMT-4B; Bendix Radio (ID = 2406932) TX
Use red slider bar for more.
Transmitter, Radiosonde T-435A/AMT-4B; Bendix Radio (ID = 2406930) TX
Bendix Radio: Transmitter, Radiosonde T-435A/AMT-4B [TX] ID = 2406930 1024x363
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transmitter, Radiosonde T-435A/AMT-4B, Bendix Radio Division; Baltimore, MD

Country:  United States of America (USA)
Manufacturer / Brand:  Bendix Radio Division; Baltimore, MD
Year: 1961/1962 ? Category: Transmitter (TX not Transceiver)
Valves / Tubes 1: 7533
Main principle Transmitter
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Dry Batteries / 6 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Transmitter, Radiosonde T-435A/AMT-4B - Bendix Radio Division;
Material Modern plastics (no Bakelite or Catalin)
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 55 x 210 x 55 mm / 2.2 x 8.3 x 2.2 inch
Notes

Die Sonde ist mit einer RCA 7533 bestückt, von außen kann die Frequenz, die wohl um die 1700 MHz liegt nach oben oder unten verschoben werden. Wie auf den Bildern zu sehen, ist die ganze Sonde in einer Plastikröhre untergebracht. Der Röhrendurchmesser beträgt etwa 55 mm.

Net weight (2.2 lb = 1 kg) 0.2 kg / 0 lb 7 oz (0.441 lb)

Model page created by Alois Wolf. See "Data change" for further contributors.
