• Country
• Soviet Union

• Manufacturer / Brand
• Berdsk Radio Works

• Year
• 1990 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 100963

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 1

• Semiconductors
• КП303 К174ХА10

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm

• Power out
• 0.4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

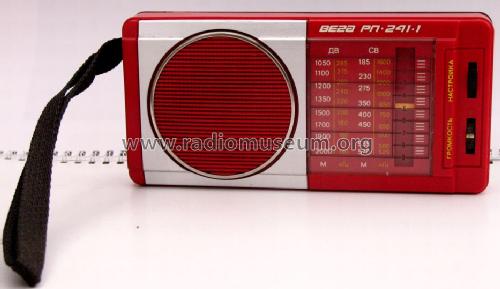

• Model: Vega {Вега} RP-241-1 {РП-241-1} - Berdsk Radio Works

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 190 x 90 x 40 mm / 7.5 x 3.5 x 1.6 inch

• Notes
• Der Vega RP 241-1 ist ein Taschenempfänger für MW und LW. Eine Buchse zum Anschluß eines Ohrhörers ist eingebaut.

• Net weight (2.2 lb = 1 kg)
• 0.3 kg / 0 lb 10.6 oz (0.661 lb)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Howard Craven. See "Data change" for further contributors.
