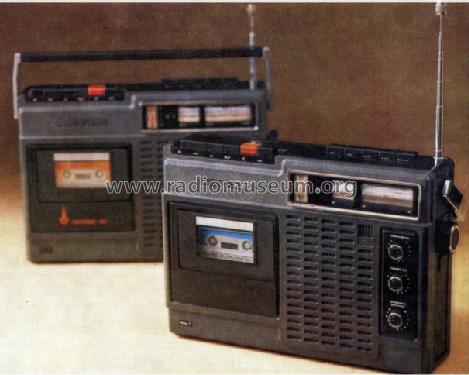

Vega {Вега} 326 Moskwa 1980 (Olympiaausführung)

Vega {Вега} 326; Berdsk Radio Works (ID = 755719) Radio Vega {Вега} 326; Berdsk Radio Works (ID = 755720) Radio
Vega {Вега} 326; Berdsk Radio Works (ID = 755721) Radio Vega {Вега} 326; Berdsk Radio Works (ID = 755722) Radio
Vega {Вега} 326; Berdsk Radio Works (ID = 755723) Radio Vega {Вега} 326; Berdsk Radio Works (ID = 755751) Radio
Vega {Вега} 326; Berdsk Radio Works (ID = 755752) Radio Vega {Вега} 326; Berdsk Radio Works (ID = 755753) Radio
Vega {Вега} 326; Berdsk Radio Works (ID = 970891) Radio Vega {Вега} 326; Berdsk Radio Works (ID = 970892) Radio
Use red slider bar for more.
Vega {Вега} 326; Berdsk Radio Works (ID = 755719) Radio
Berdsk Radio Works: Vega {Вега} 326 [Radio] ID = 755719 875x656
Select picture or schematic to display from thumbnails on the right and click for download.
For model Vega {Вега} 326 Moskwa 1980 (Olympiaausführung), Berdsk Radio Works

Country:  Soviet Union
Manufacturer / Brand:  Berdsk Radio Works
Year: 1979/1980 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Vega {Вега} 326 [Moskwa 1980 ] - Berdsk Radio Works
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 315 x 270 x 90 mm / 12.4 x 10.6 x 3.5 inch
Notes Moskwa 1980 (Olympiauasführung); Radiorekorder, UKW: OIRT-Band 66...73,5 MHz, getrennte Trommelskalen für AM- und FM. Feldstärke und Batterieanzeige.
Eingebautes Kassettenteil von BRG (Ungarn), eingebautes Mikrofon.

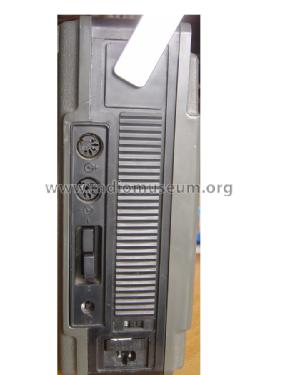

Anschlüsse: Überspielausgang, Plattenspieler, Kopfhörer.
Modell mit Werbung für Sommerolympiade "MOCKBA 80".
Net weight (2.2 lb = 1 kg) 3.4 kg / 7 lb 7.8 oz (7.489 lb)
Price in first year of sale 287.00 Rubel

Model page created by Wolfgang Lill. See "Data change" for further contributors.



All listed radios etc. from Berdsk Radio Works
Here you find 41 models, 37 with images and 32 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
