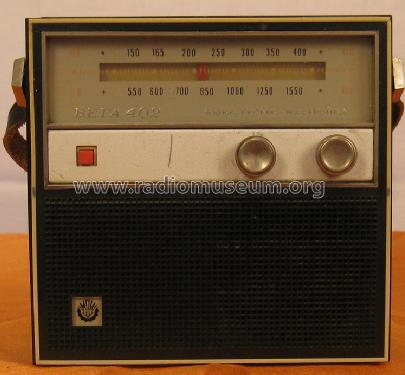

For model Vega {Вега} 402 app-IV-2, Berdsk Radio Works:
Kaunas Lithuania

Country:  Soviet Union
Manufacturer / Brand:  Berdsk Radio Works
Year: 1975 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: ГТ309 ГТ309 ГТ309 МП40 МП40 МП40 МП40
Main principle Superheterodyne (common); ZF/IF 465 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: Vega {Вега} 402 [app-IV-2] - Berdsk Radio Works
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 160 x 155 x 55 mm / 6.3 x 6.1 x 2.2 inch
Notes Released in Russia ca 1971, 7 transistor portable with earphone, external aerial, 9 V PSU sockets and dial illumination. Imported into Western Europe with English lettering by Mashpriborintorg and these examples have the Mashpriborintorg logo on the box and grille. The domestic version shows in Russian "Sovnarhoz - Moskovskij" = Moskovskij Soviet (Sov) Narodnovo (Nar) Hoziajstva (Hoz). In English this means somewhat like - "Moscow folk economy council".
Net weight (2.2 lb = 1 kg) 0.7 kg / 1 lb 8.7 oz (1.542 lb)
Price in first year of sale 37.00 RUR
Literature/Schematics (1) Radio- es TV- kapcsolások, 1975-77

Model page created by Howard Craven. See "Data change" for further contributors.
