Lexikothek-Phonobox T.A.I. System

Lexikothek-Phonobox T.A.I. System; Bertelsmann (ID = 2087449) R-Player Lexikothek-Phonobox T.A.I. System; Bertelsmann (ID = 2087450) R-Player
Lexikothek-Phonobox T.A.I. System; Bertelsmann (ID = 2087451) R-Player Lexikothek-Phonobox T.A.I. System; Bertelsmann (ID = 2087452) R-Player
Lexikothek-Phonobox T.A.I. System; Bertelsmann (ID = 2087453) R-Player Lexikothek-Phonobox T.A.I. System; Bertelsmann (ID = 2087454) R-Player
Lexikothek-Phonobox T.A.I. System; Bertelsmann (ID = 2087455) R-Player Lexikothek-Phonobox T.A.I. System; Bertelsmann (ID = 2087457) R-Player
Lexikothek-Phonobox T.A.I. System; Bertelsmann (ID = 2087615) R-Player Lexikothek-Phonobox T.A.I. System; Bertelsmann (ID = 2169030) R-Player
Use red slider bar for more.
Lexikothek-Phonobox T.A.I. System; Bertelsmann (ID = 2087449) R-Player
Bertelsmann: Lexikothek-Phonobox T.A.I. System [R-Player] ID = 2087449 1400x1637
Select picture or schematic to display from thumbnails on the right and click for download.

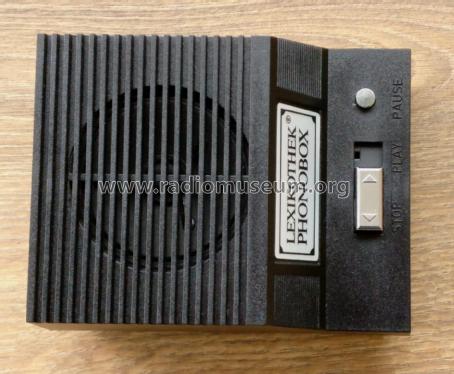

For model Lexikothek-Phonobox T.A.I. System, Bertelsmann Schallplattenring (Ariola); Gütersloh

Country:  Germany
Manufacturer / Brand:  Bertelsmann Schallplattenring (Ariola); Gütersloh
Year: 1990 ?? Category: Sound/Video Recorder and/or Player

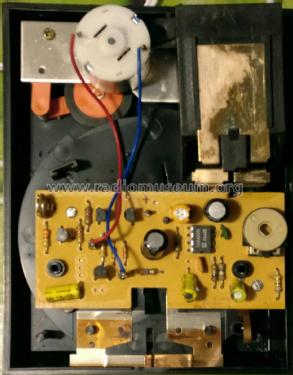

Semiconductors (the count is only for transistors) 4: TBA820M
Main principle Audio-Amplification
Wave bands - without
Details Record Player (not changer)
Power type and voltage Dry Batteries / R6: 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out
from Radiomuseum.org Model: Lexikothek-Phonobox T.A.I. System - Bertelsmann Schallplattenring
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 101 x 70 x 130 mm / 4 x 2.8 x 5.1 inch
Notes

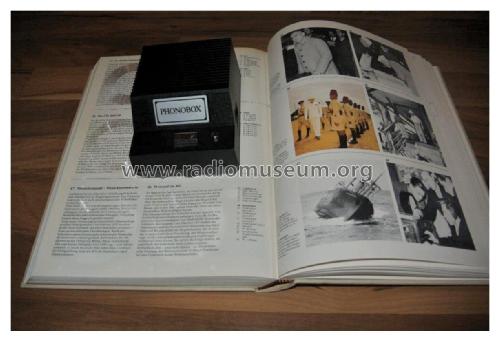

Spezielles Aufsatz-Abpielgerät für Tondokumente auf Tonfolien.
Das Gerät wird auf die Tonfolie gesetzt und gibt mittels rotierendem Saphirnadel-Abtastsystem den Tonträgerinhalt wieder.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.



All listed radios etc. from Bertelsmann Schallplattenring (Ariola); Gütersloh
Here you find 4 models, 4 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.







Forum contributions about this model
Bertelsmann: Lexikothek-Phonobox T.A.I. System
Threads: 1 | Posts: 1
Hits: 607     Replies: 0
bertelsman: Phonobox movie
Sandor Selyem-Tóth
14.Nov.17
  1

//youtu.be/0KMWLV_5mTY


Bertelsmann: Lexikothek-Phonobox T.A.I. System
