Rely-O-Dyne De Luxe Super-Five 5

Better Radio Products; Muncie, Indiana

Data
Forum
Pictures
Collections

  • Year
  • 1925 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 170293
    • Brand: Melody

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Valves / Tubes
  • Main principle
  • TRF without regeneration
  • Tuned circuits
  • 3 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage and/or dry batteries / 6; 22.5; 90 Volt
  • Loudspeaker
  • - This model requires external speaker(s).

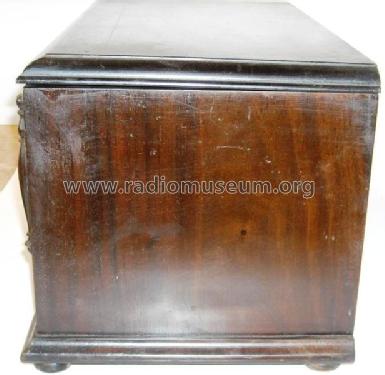

  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Rely-O-Dyne De Luxe Super-Five 5 - Better Radio Products; Muncie,
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 20.75 x 10.25 x 11 inch / 527 x 260 x 279 mm
  • Notes

  • Similar Chassis/Front is used in ERLA S-11 / ERLA DeLuxe Super-Five 5 / Rely-O-Dyne 5.
    Similar De Luxe cabinet is used for ERLA DeLuxe Super-Five 5.

    Manufactured by ERLA, with numerous ERLA stamped parts. Believed to be very similar, or identical to the ERLA DeLuxe Super-Five 5, but no schematic or picture is available for that model.

  • Net weight (2.2 lb = 1 kg)
  • 19 lb (19 lb 0 oz) / 8.626 kg
  • Source of data
  • -- Collector info (Sammler)
  • Author
  • Model page created by Robin Roeckers. See "Data change" for further contributors.
