• Country
• Germany

• Manufacturer / Brand
• Beyer; Berlin, später Beyerdynamic; Heilbronn

• Year
• 2000 ?

• Category
• Commercial Receiver (may include amateur bands)

• Radiomuseum.org ID
• 268550

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 2 x 1,2 Volt

• Loudspeaker
• - For headphones or amp.

• from Radiomuseum.org
• Model: FE 22 - Beyer; Berlin, später

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 65 x 21 x 85 mm / 2.6 x 0.8 x 3.3 inch

• Notes

• Taschenempfänger für die Führungsfunkanlage FSE 22,

  lieferbar als 1-Kanal Empfänger (36,72 MHz) Type FE 22.10

  oder als 3-Kanal-Empfänger umschaltbar (37,82 /37,94 /37,98 MHz) Type FE 22.30

  Höreranschluß über 3,5mm Klinke,

  festeingebaute Ni-Cd Akkus 2 x 1,2V /600mAh,

  das Hörerkabel dient zugleich als Antenne.



• Net weight (2.2 lb = 1 kg)
• 0.115 kg / 0 lb 4.1 oz (0.253 lb)

• Mentioned in

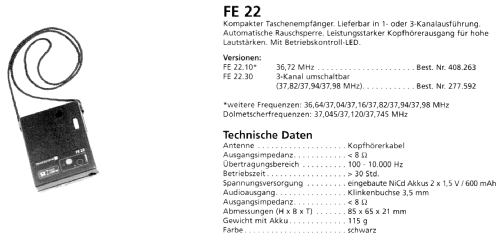

• -- Original prospect or advert

• Author
• Model page created by a member from D. See "Data change" for further contributors.
