M55-HN

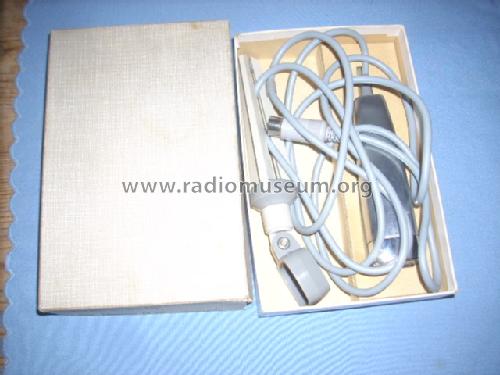

M55-HN; Beyerdynamic; (ID = 944678) Microphone/PU M55-HN; Beyerdynamic; (ID = 944679) Microphone/PU

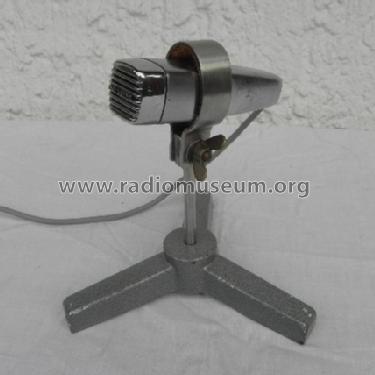

M55-HN; Beyerdynamic; (ID = 1088181) Microphone/PU M55-HN; Beyerdynamic; (ID = 1088182) Microphone/PU
M55-HN; Beyerdynamic; (ID = 1088183) Microphone/PU M55-HN; Beyerdynamic; (ID = 1507393) Microphone/PU
Use red slider bar for more.
M55-HN; Beyerdynamic; (ID = 944678) Microphone/PU
Beyerdynamic;: M55-HN [Microphone/PU] ID = 944678 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model M55-HN, Beyerdynamic; Heilbronn

Country:  Germany
Manufacturer / Brand:  Beyerdynamic; Heilbronn
Year: 1967 Category: Microphone or Pick-up element
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker
Power out
from Radiomuseum.org Model: M55-HN - Beyerdynamic; Heilbronn
Dimensions (WHD) 32 x 32 x 131 mm / 1.3 x 1.3 x 5.2 inch
Notes

Dynamisches Tauchspulenmikrofon

  • Frequenz: 70-16000 Hz
  • Innenwiderstand: 200 Ω und 80 kΩ
  • Empfindlichkeit:
    • 0,12 mV/µbar bei 1 kHz und 200 Ω
    • 2 mV/µbar bei 1 kHz und 80 kΩ
  • DIN-Stecker-Belegung:
    • 1-2 = 80 kΩ
    • 2-3 = 200 Ω
Net weight (2.2 lb = 1 kg) 0.240 kg / 0 lb 8.5 oz (0.529 lb)
Source of data - - Data from my own collection

Model page created by Willi Ribbe. See "Data change" for further contributors.
