- Country
- Germany
- Manufacturer / Brand
- Beyer; Berlin, später Beyerdynamic; Heilbronn
- Year
- 1956/1957
- Category
- Microphone or Pick-up element
- Radiomuseum.org ID
- 98881
ebay.ch, math74blau, #162881602877
ebay.ch, math74blau, #162881602877
ebay.ch, math74blau, #162881602877
ebay.ch, math74blau, #162881602877
ebay.ch, math74blau, #162881602877
M60 mit Originalverpackung
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org

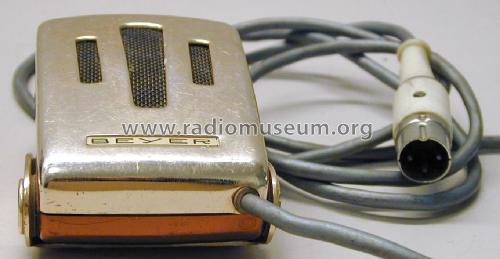

- Model: M60 - Beyer; Berlin, später
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 51 x 71 x 29 mm / 2 x 2.8 x 1.1 inch
- Notes
-
Tauchspulen-Mikrofon mit Nierencharakteristik; Frequenzbereich 50-12000 Hz; Empfindlichkeit 0,25 mV/µb. Impedanz 200 Ω, Kabel mit 3-poligem DIN-Stecker.
- Net weight (2.2 lb = 1 kg)
- 0.1 kg / 0 lb 3.5 oz (0.22 lb)
- Price in first year of sale
- 74.00 DM
- Source of data
- HdB d.Rdf-& Ferns-GrH 1956/57
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
- Other Models
-
Here you find 149 models, 140 with images and 55 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Beyer; Berlin, später Beyerdynamic; Heilbronn
