• Country
• Germany

• Manufacturer / Brand
• Beyer; Berlin, später Beyerdynamic; Heilbronn

• Year
• 2000 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 268973

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 125 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org

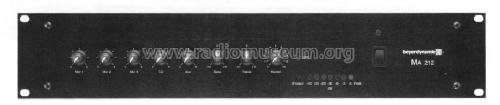

• Model: Mischverstärker MA 212 - Beyer; Berlin, später

• Shape
• Rack

• Dimensions (WHD)
• 435 x 88 x 190 mm / 17.1 x 3.5 x 7.5 inch

• Notes

• Ela-Mischverstärker,

  125 W Sinus, 100V Ausgang,

  3 Mikro-Eingänge symmetrisch mit 24 V Phantomspeisung,

  2 Tonträger-Eingänge.

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by a member from D. See "Data change" for further contributors.
