• Country
• Germany

• Manufacturer / Brand
• Beyer; Berlin, später Beyerdynamic; Heilbronn

• Year
• 2000 ?

• Category
• Commercial Transmitter (TX not Transceiver)

• Radiomuseum.org ID
• 268549

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Transmitter

• Wave bands
• Wave Bands given in the notes.

• Loudspeaker
• - - No sound reproduction output.

• from Radiomuseum.org
• Model: S 22 WG Best.Nr. 427.780 - Beyer; Berlin, später

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 200 x 330 x 110 mm / 7.9 x 13 x 4.3 inch

• Notes

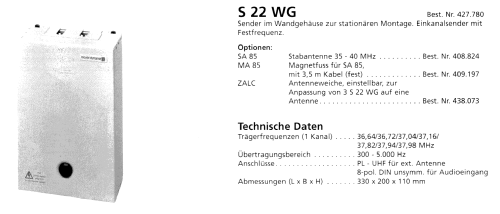

• Stationärer Wandsender für die Führungs-Funkanlage FSE 22,

  1 Festfrequenz wahlweise 36,64 /36,72 /37,04 /37,16 /37,82 /37,94 /37,98 MHz,

  8 pol.DIN-Buchse für Audioeingang,

  Antennenanschluß PL-UHF.
