Minitoc

• Country
• Spain

• Manufacturer / Brand
• Bianchi S.A.; San Sebastián

• Year
• 1975

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 315876

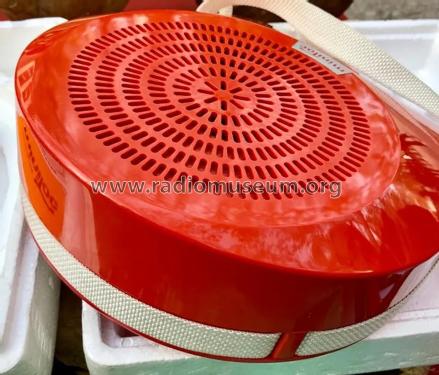

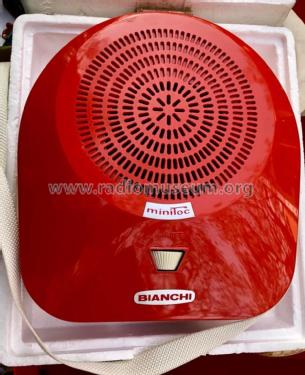

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage
• Dry Batteries / C: 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 0.8 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Minitoc - Bianchi S.A.; San Sebastián

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 210 x 60 x 240 mm / 8.3 x 2.4 x 9.4 inch

• Notes

• Bianchi S.A. Tocadiscos comediscos Minitoc

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
