Stereo Cassette Deck 01-6764

Stereo Cassette Deck 01-6764; Binatone; Global (ID = 2146737) R-Player Stereo Cassette Deck 01-6764; Binatone; Global (ID = 2146734) R-Player
Stereo Cassette Deck 01-6764; Binatone; Global (ID = 2146735) R-Player Stereo Cassette Deck 01-6764; Binatone; Global (ID = 2146736) R-Player
Stereo Cassette Deck 01-6764; Binatone; Global (ID = 2146738) R-Player Stereo Cassette Deck 01-6764; Binatone; Global (ID = 2146739) R-Player
Stereo Cassette Deck 01-6764; Binatone; Global (ID = 2146740) R-Player Stereo Cassette Deck 01-6764; Binatone; Global (ID = 2146741) R-Player
Use red slider bar for more.

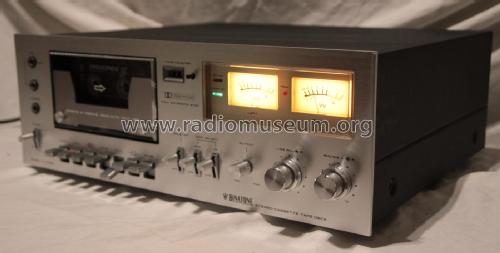

Stereo Cassette Deck 01-6764; Binatone; Global (ID = 2146737) R-Player
Binatone; Global: Stereo Cassette Deck 01-6764 [R-Player] ID = 2146737 1399x709
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Cassette Deck 01-6764, Binatone; (Global)

Country:  Hong Kong
Manufacturer / Brand:  Binatone; (Global)
Year: 1982 ?? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Stereo Cassette Deck 01-6764 - Binatone; Global
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 420 x 152 x 345 mm / 16.5 x 6 x 13.6 inch
Notes

Track System: 4 track 2 channel
Recording System: AC Bias Recording (105kHz)
Erasing System: AC Erasure
Erace Ratio: more then 65dB
Motor: Frequency Control System, DC servo motor
Tape speed; 4.75cm/s
Wow and Flutter: 0.08% (WRMS)
F,F, Rew time: 110sec (c-60)
Frequency Responce:
Normal - 30Hz-14kHz
Cr2O2 - 30Hz-15kHz
Distortion (REC/PLAY): 2.0% (1kHz 0VU)
S/N Ratio: 50dB (Dolby OFF) 60dB (Dolby ON)
Crosstalk: more then 60dB
Output level: 0.775V

Net weight (2.2 lb = 1 kg) 4.7 kg / 10 lb 5.6 oz (10.352 lb)

Model page created by Bartosz Szwed. See "Data change" for further contributors.
