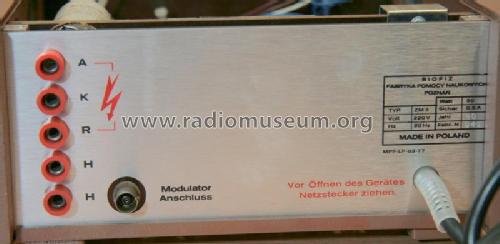

Mikrowellensystem ZM3 Netzteil-Modulator

Biofiz Fabrika Pomocy Naukowych; Poznań

  • Year
  • 1977
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 295384

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Mikrowellensystem ZM3 Netzteil-Modulator - Biofiz Fabrika Pomocy
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 230 x 110 x 320 mm / 9.1 x 4.3 x 12.6 inch
  • Notes
  • Das ZM3-System wurde in DDR-Bildungseinrichtungen zur Darstellung der Eigenschaften von Mikrowellen eingesetzt. Die Sendefrequenz wird vom russischen Klystron K-19 bestimmt (ca. 9,5 GHz).

    Zum System gehören noch Sende-Empfangsantenne (Hohlleiter) mit Tischstativ sowie verschiedene Tafeln aus Aluminium oder Pertinax.

  • Author
  • Model page created by Uwe Friedl. See "Data change" for further contributors.
