Operatic 28T

Operatic 28T; Bland Radio Ltd; (ID = 805920) Radio
Operatic 28T; Bland Radio Ltd; (ID = 2145114) Radio Operatic 28T; Bland Radio Ltd; (ID = 2144557) Radio

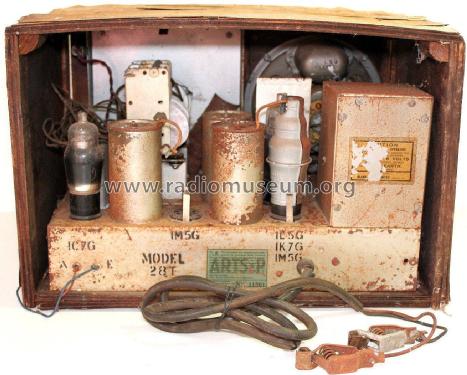

Operatic 28T; Bland Radio Ltd; (ID = 2144556) Radio
Use red slider bar for more.
Operatic 28T; Bland Radio Ltd; (ID = 2145114) Radio
Bland Radio Ltd;: Operatic 28T [Radio] ID = 2145114 859x611
Select picture or schematic to display from thumbnails on the right and click for download.
For model Operatic 28T, Bland Radio Ltd; Adelaide:
eBay advertisement by seller “jwsy168”, Item Number 172847000314. Seller assumes all responsibility for this listing. Please contact Radio Museum to provide more complete photo credit information or request removal.

Country:  Australia
Manufacturer / Brand:  Bland Radio Ltd; Adelaide
Brand

Operatic
Year: 1939–1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 1C7G 1M5G 1M5G 1K7G 1L5G
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Operatic 28T - Bland Radio Ltd; Adelaide
Shape Tablemodel, with any shape - general.
Notes This model uses a synchronous vibrator power unit.
Circuit diagram reference Australian Official Radio Service Manual Vol. V
Literature/Schematics (1) Mingay's Radio Diagram & I.F. Index

Model page created by Stuart Irwin. See "Data change" for further contributors.



All listed radios etc. from Bland Radio Ltd; Adelaide
Here you find 90 models, 28 with images and 8 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
