Operatic Carmen

Operatic Carmen; Operatic brand, (ID = 2352179) Radio Operatic Carmen; Operatic brand, (ID = 2352182) Radio
Operatic Carmen; Operatic brand, (ID = 2352185) Radio Operatic Carmen; Operatic brand, (ID = 2352187) Radio
Operatic Carmen; Operatic brand, (ID = 2352188) Radio Operatic Carmen; Operatic brand, (ID = 2352189) Radio
Operatic Carmen; Operatic brand, (ID = 2352190) Radio
Use red slider bar for more.
Operatic Carmen; Operatic brand, (ID = 2352179) Radio
Operatic brand,: Operatic Carmen [Radio] ID = 2352179 1400x883
Select picture or schematic to display from thumbnails on the right and click for download.
For model Operatic Carmen, Operatic (brand), Bland Radio Pty. Ltd.: Adelaide SA

Country:  Australia
Manufacturer / Brand:  Operatic (brand), Bland Radio Pty. Ltd.: Adelaide SA
Brand

Operatic
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner

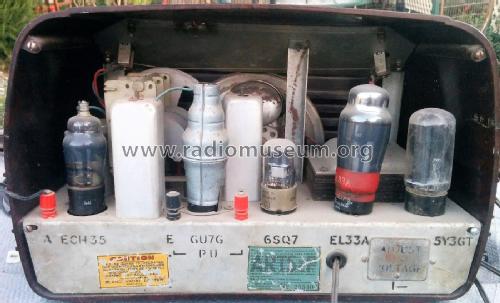

Valves / Tubes 5: ECH35 6U7G 6SQ7GT EL33A 5Y3GT
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 200-260 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: Operatic Carmen - Operatic brand, Bland Radio
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 380 x 210 x 240 mm / 15 x 8.3 x 9.4 inch
Net weight (2.2 lb = 1 kg) 6.5 kg / 14 lb 5.1 oz (14.317 lb)
Circuit diagram reference Australian Official Radio Service Manual Vol. VII

Model page created by Stuart Irwin. See "Data change" for further contributors.



All listed radios etc. from Operatic (brand), Bland Radio Pty. Ltd.: Adelaide SA
Here you find 116 models, 40 with images and 8 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
