Operatic Mignon RF A12

Operatic Mignon RF A12; Operatic brand, (ID = 2352164) Radio Operatic Mignon RF A12; Operatic brand, (ID = 2352166) Radio
Operatic Mignon RF A12; Operatic brand, (ID = 2352169) Radio
Use red slider bar for more.
Operatic Mignon RF A12; Operatic brand, (ID = 2352164) Radio

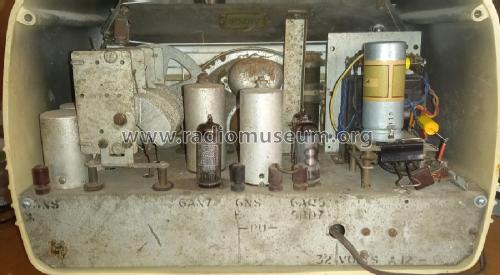

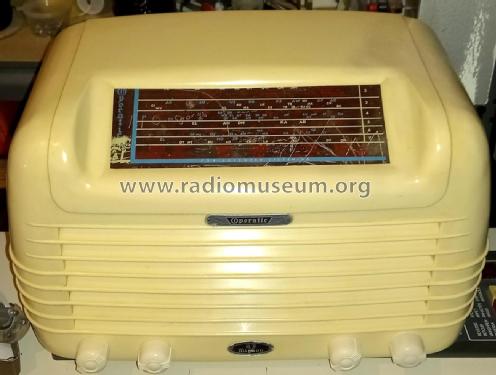

Operatic brand,: Operatic Mignon RF A12 [Radio] ID = 2352164 1400x905
Select picture or schematic to display from thumbnails on the right and click for download.
For model Operatic Mignon RF A12, Operatic (brand), Bland Radio Pty. Ltd.: Adelaide SA

Country:  Australia
Manufacturer / Brand:  Operatic (brand), Bland Radio Pty. Ltd.: Adelaide SA
Brand

Operatic
Year: 1950–1965 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6N8 6AN7 6N8 6BD7 6AQ5
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Direct Current supply (DC) / 32 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Operatic Mignon RF A12 - Operatic brand, Bland Radio
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 280 x 210 x 240 mm / 11 x 8.3 x 9.4 inch
Notes This model is for 32V farm lighting systems and uses a synchronous vibrator power unit.
Net weight (2.2 lb = 1 kg) 6.5 kg / 14 lb 5.1 oz (14.317 lb)
Price in first year of sale 49.50 AUS £
Circuit diagram reference Australian Official Radio Service Manual Vol. IX
Mentioned in Radio Electrical WEEKLY (Product Data Service, April 1951, Page 25.)
Literature/Schematics (1) Australian Official Radio Service Manual AORSM (Volume 9, 1951 (for 1950 models), Page 248.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
