• Year
  • 1961
  • Category
  • Miscellaneous (Other, Various) - see notes
  • Radiomuseum.org ID
  • 307853
    • Brand: Operatic

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Main principle
  • Audio-Amplification
  • Wave bands
  • Broadcast only (MW).
  • Details
  • Record Player (not changer); Loudspeaker + integr.Amplifier
  • Power type and voltage
  • Alternating Current supply (AC) / 240 Volt
  • Loudspeaker
  • Presumably Dynamic Loudspeaker (moving coil)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: School public address system - Operatic brand, Bland Radio
  • Shape
  • Boatanchor (heavy military or commercial set >20 kg).
  • Notes

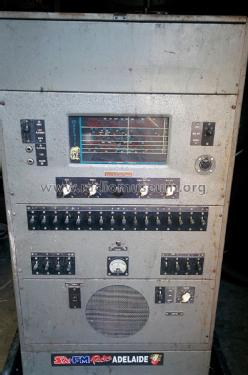

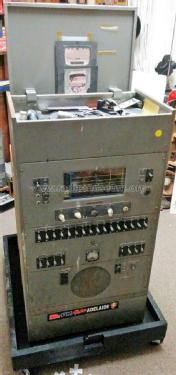

  • School public address system mounted in a 19” rack.

    Comprising;

    • Turntable
    • Broadcast band tuner and amplifier with tape and microphone inputs.
    • Monitor amplifier
    • Switched speaker distribution panel
    • Power distrubution



  • Mentioned in
  • -- Collector info (Sammler)
  • Author
  • Model page created by Keith Ellison. See "Data change" for further contributors.
