AP30 Series A-82

AP30 Series A-82; Bogen, David Co., (ID = 828887) Ampl/Mixer
AP30 Series A-82; Bogen, David Co., (ID = 828791) Ampl/Mixer AP30 Series A-82; Bogen, David Co., (ID = 828792) Ampl/Mixer
AP30 Series A-82; Bogen, David Co., (ID = 971618) Ampl/Mixer AP30 Series A-82; Bogen, David Co., (ID = 971620) Ampl/Mixer
AP30 Series A-82; Bogen, David Co., (ID = 998780) Ampl/Mixer AP30 Series A-82; Bogen, David Co., (ID = 998782) Ampl/Mixer
AP30 Series A-82; Bogen, David Co., (ID = 998783) Ampl/Mixer
Use red slider bar for more.
AP30 Series A-82; Bogen, David Co., (ID = 828791) Ampl/Mixer
Bogen, David Co.,: AP30 Series A-82 [Ampl/Mixer] ID = 828791 400x300

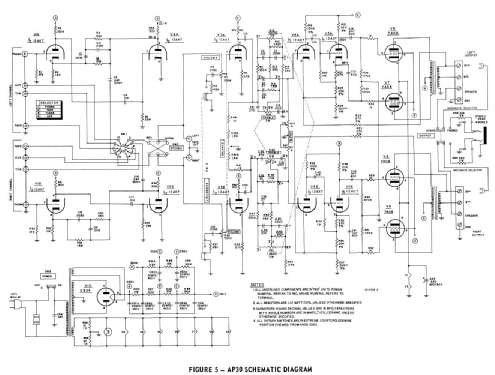

Select picture or schematic to display from thumbnails on the right and click for download.
For model AP30 Series A-82, Bogen, David Co., Inc.; New York (NY):
USA_David Bogen Co. Inc._AP 30-Front view Ebay: Submitted by Andy on June 22, 2010

Country:  United States of America (USA)
Manufacturer / Brand:  Bogen, David Co., Inc.; New York (NY)
Year: 1963 Category: Audio Amplifier or -mixer
Valves / Tubes 10: 12AX7 12AX7 12AX7 12AX7 12AU7 7408 7408 7408 7408 GZ34
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker - This model requires external speaker(s).
Power out 30 W (unknown quality)
from Radiomuseum.org Model: AP30 Series A-82 - Bogen, David Co., Inc.; New
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 15 x 4.75 x 11.62 inch / 381 x 121 x 295 mm
Net weight (2.2 lb = 1 kg) 16 lb 0 oz (16 lb) / 7.264 kg
Price in first year of sale 100.00 $
Literature/Schematics (1) Radio Shack 1963 Catalog
