BB-1A

BB-1A ; Bogen, David Co., (ID = 555898) Converter

BB-1A ; Bogen, David Co., (ID = 555899) Converter

BB-1A ; Bogen, David Co., (ID = 555900) Converter

BB-1A ; Bogen, David Co., (ID = 555901) Converter
BB-1A ; Bogen, David Co., (ID = 555897) Converter
Use red slider bar for more.

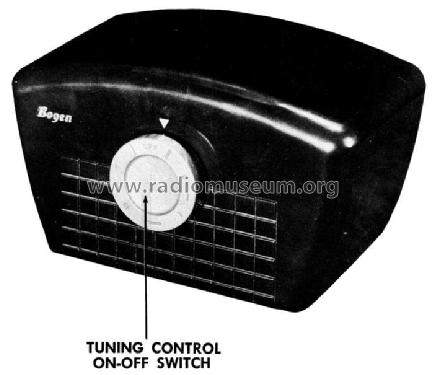

BB-1A ; Bogen, David Co., (ID = 555897) Converter
Bogen, David Co.,: BB-1A [Converter] ID = 555897 700x605
Select picture or schematic to display from thumbnails on the right and click for download.
For model BB-1A, Bogen, David Co., Inc.; New York (NY):
Sams Photofact Folders

Country:  United States of America (USA)
Manufacturer / Brand:  Bogen, David Co., Inc.; New York (NY)
Year: 1953 Category: Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
Valves / Tubes 2: 6J6 6J6
Main principle Radio Frequency Amplification only
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: BB-1A - Bogen, David Co., Inc.; New
Shape Tablemodel, with any shape - general.
Notes The David Bogen Model BB-1A is an AC Operated 12 Channel VHF Television Booster Amplifier.

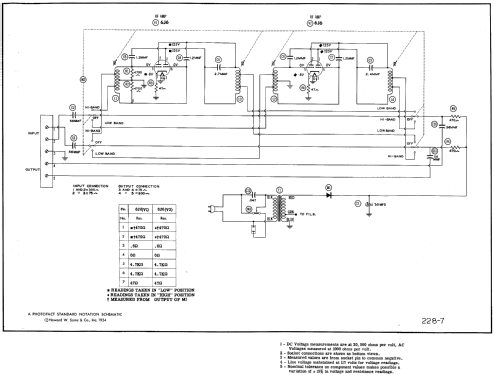

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 1-54, Set 228, Folder 7)

Model page created by Egon Penker. See "Data change" for further contributors.
