DB130 9 tubes

DB130 ; Bogen, David Co., (ID = 2249410) Ampl/Mixer

DB130 ; Bogen, David Co., (ID = 2249412) Ampl/Mixer

DB130 ; Bogen, David Co., (ID = 2249414) Ampl/Mixer

DB130 ; Bogen, David Co., (ID = 2249415) Ampl/Mixer

DB130 ; Bogen, David Co., (ID = 2249417) Ampl/Mixer

DB130 ; Bogen, David Co., (ID = 2249418) Ampl/Mixer

DB130 ; Bogen, David Co., (ID = 2249419) Ampl/Mixer
DB130 ; Bogen, David Co., (ID = 414919) Ampl/Mixer DB130 ; Bogen, David Co., (ID = 414920) Ampl/Mixer
DB130 ; Bogen, David Co., (ID = 456127) Ampl/Mixer DB130 ; Bogen, David Co., (ID = 414921) Ampl/Mixer
DB130 ; Bogen, David Co., (ID = 414922) Ampl/Mixer DB130 ; Bogen, David Co., (ID = 414923) Ampl/Mixer
DB130 ; Bogen, David Co., (ID = 414924) Ampl/Mixer DB130 ; Bogen, David Co., (ID = 456123) Ampl/Mixer
DB130 ; Bogen, David Co., (ID = 456125) Ampl/Mixer DB130 ; Bogen, David Co., (ID = 456126) Ampl/Mixer
Use red slider bar for more.
DB130 ; Bogen, David Co., (ID = 414919) Ampl/Mixer
Bogen, David Co.,: DB130 [Ampl/Mixer] ID = 414919 928x432

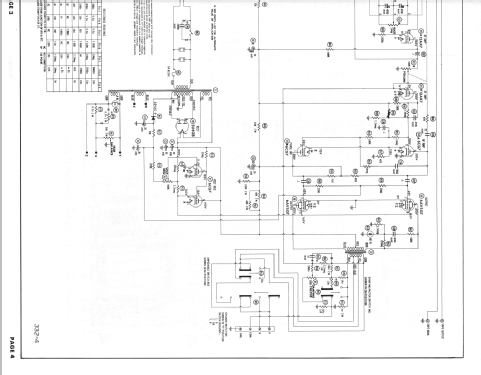

Select picture or schematic to display from thumbnails on the right and click for download.
For model DB130 9 tubes, Bogen, David Co., Inc.; New York (NY):
aus ebay, Verkäufer bot.inc

Country:  United States of America (USA)
Manufacturer / Brand:  Bogen, David Co., Inc.; New York (NY)
Year: 1955 ?? Category: Audio Amplifier or -mixer
Valves / Tubes 9: 12AX7 12AU7 12AX7 6CG7 6AV5GT 6AV5GT 5Y3GT 5Y3GT 6CG7
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: DB130 [9 tubes] - Bogen, David Co., Inc.; New
Material Metal case
Shape Chassis only or for «building in»
Notes Mono amp. with variable damping factor.
Source of data -- Collector info (Sammler)

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.



All listed radios etc. from Bogen, David Co., Inc.; New York (NY)
Here you find 204 models, 179 with images and 110 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
