DB20; Bogen, David Co., (ID = 909901) Ampl/Mixer

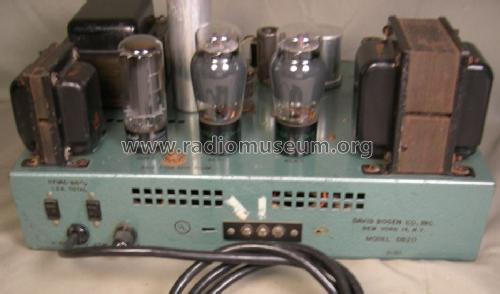

Bogen, David Co.,: DB20 [Ampl/Mixer] ID = 909901 800x518

Select picture or schematic to display from thumbnails on the right and click for download.

For model DB20, Bogen, David Co., Inc.; New York (NY):
aus ebay, #120630990976, Verkäufer oceanview_hi

Country:

United States of America (USA)

Manufacturer / Brand:

Bogen, David Co., Inc.; New York (NY)

Year: 1955 ??

Category: Audio Amplifier or -mixer

Valves / Tubes

7: 12AT7 12AT7 12AT7 12AU7 6L6G 6L6G 5U4G

Main principle	Audio-Amplification
Wave bands	- without
Details
Power type and voltage	Alternating Current supply (AC) / 117 Volt
Loudspeaker	- This model requires external speaker(s).
Power out	20 W (unknown quality)
from Radiomuseum.org	Model: DB20 - Bogen, David Co., Inc.; New
Material	Metal case
Shape	Chassis only or for «building in»
Dimensions (WHD)	15 x 9.75 x 8 inch / 381 x 248 x 203 mm
Notes	Integrated Amplifier, mono, with several phono equalization settings.

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
