For model Mobile System E66, Bogen, David Co., Inc.; New York (NY):
Sams Photofact Folders

Country:  United States of America (USA)
Manufacturer / Brand:  Bogen, David Co., Inc.; New York (NY)
Year: 1949 Category: Audio Amplifier or -mixer
Valves / Tubes 4: 6SJ7 6SL7GT 6L6GA 6X5GT
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Line / Batteries (any type) / Either Battery: 1 x 6 V or AC: 60 cycles, 117 Volt
Loudspeaker - This model requires external speaker(s).
Power out 23 W (30 W max.)
from Radiomuseum.org Model: Mobile System E66 - Bogen, David Co., Inc.; New
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 6.125 x 6.875 x 9.25 inch / 156 x 175 x 235 mm
Notes Vibrator for +B.
The Bogen Model E66 is an AC or Storage Battery operated 2 Channel Amplifier.
Price in first year of sale 75.25 USD

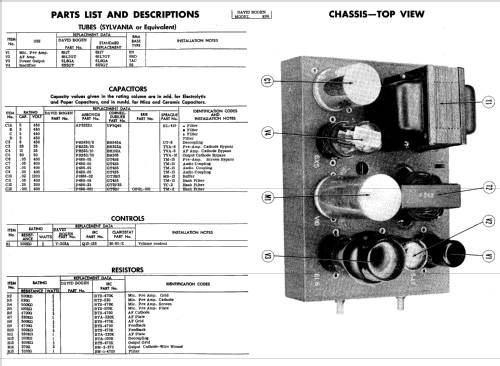

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 2-50 Set 85, Folder 4)
Literature/Schematics (2) Radio Master's Catalog, 15th ed., 1950-51, pg. B-27.

Model page created by Egon Penker. See "Data change" for further contributors.
